Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit
whatsapp:+8613424013606.skype:sensenhenhao
hot air soldering machine
hot air rework tool
portable rework stationstation
| soldering station Specifications: | |
| Console | |
| Model | DES-560C |
| Air volume | 28L/min |
| Heating element | 110V/A1525 ;220V/A1526 |
| High temperature resistance sleeve | GP5 |
| Power consumption | 560W |
| Hot air temperature | 80-600℃ |
| Weight | 0.8kg |
| External dimensions | 32*20.5*6cm |
| Cord length | 1.6m |
| packing list: | |
| packing carton | 1 |
| manual | 1 |
| main body | 1 |
| IC popper | (large, small) 1 |
| spurt-tip A1130 | 1 |
| spurt-tip A1170A | 1
|
soldering station Features:
1.Upgraded Hot Air small size, saving working space with the new design.
2.Smd Rework adopt vortex air outlet to reduce uneven temperature distribution.
3.The household hot air heat gun small body volume, saving working space, portable handle controlling, saving working time.
4.Smd Rework Soldering Station, adapting to desoldering chips of QFP, SOP PLCC & SOJ.
5.Setting cooling function:when turning off the power, the system continues sending cool air until the temperature is lower down to 80℃, protect the elements from high temperature damage.
6.Inside built-in temperature sensor, to ensure stable temperature of different air volume.
7.Static elimination design that is safe for sensitive elements.

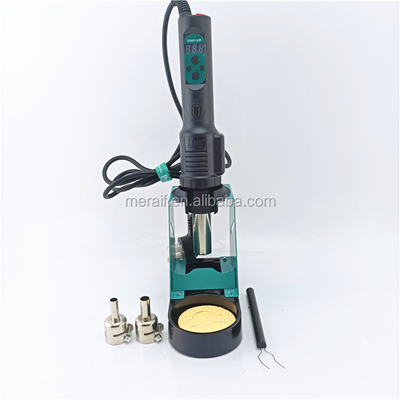

soldering station picture show:
